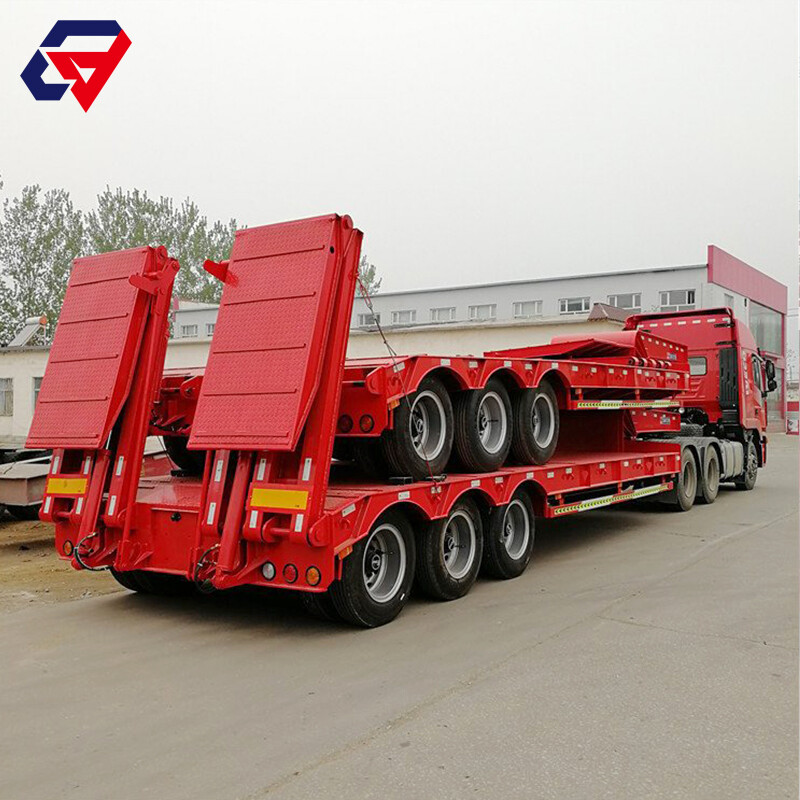

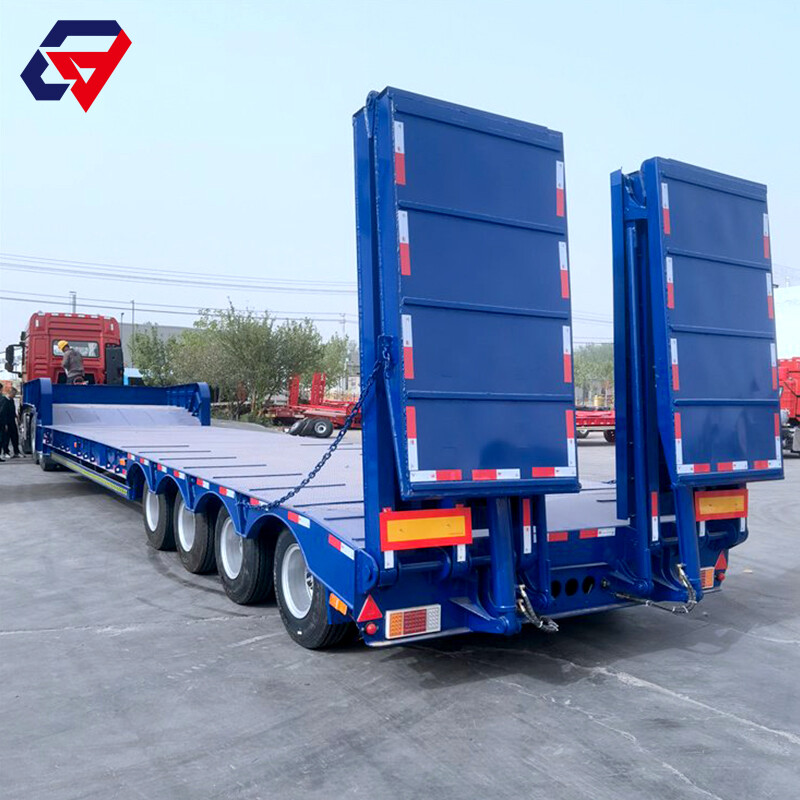

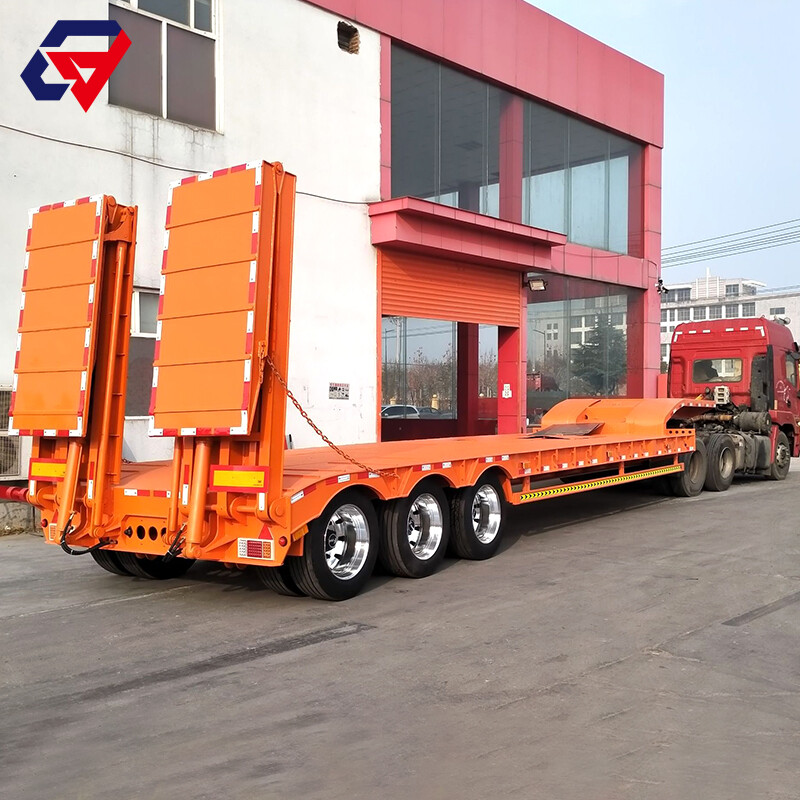

6 Axles Low Bed Trailers
Low Bed Trailer trucks are mainly used to transport some non-removable objects like excavators, loaders and harvesters.
The use of three-axis balance type, two-axis balance type or steel suspension, there is a mass balance block between the front and rear leaf springs, which can make the deflection of the front and rear leaf springs equal to change, so that the force balance of the front and rear axes.
The main plane of the frame cargo platform is low, which ensures the smoothness of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel. The computer aided design software used in the whole vehicle is flexible and diverse for optimization design, and the frame bearing surface is designed according to user requirements to meet the transportation of various special goods.
admin@lqdtruck.com
+86 13181079266
Contact Us

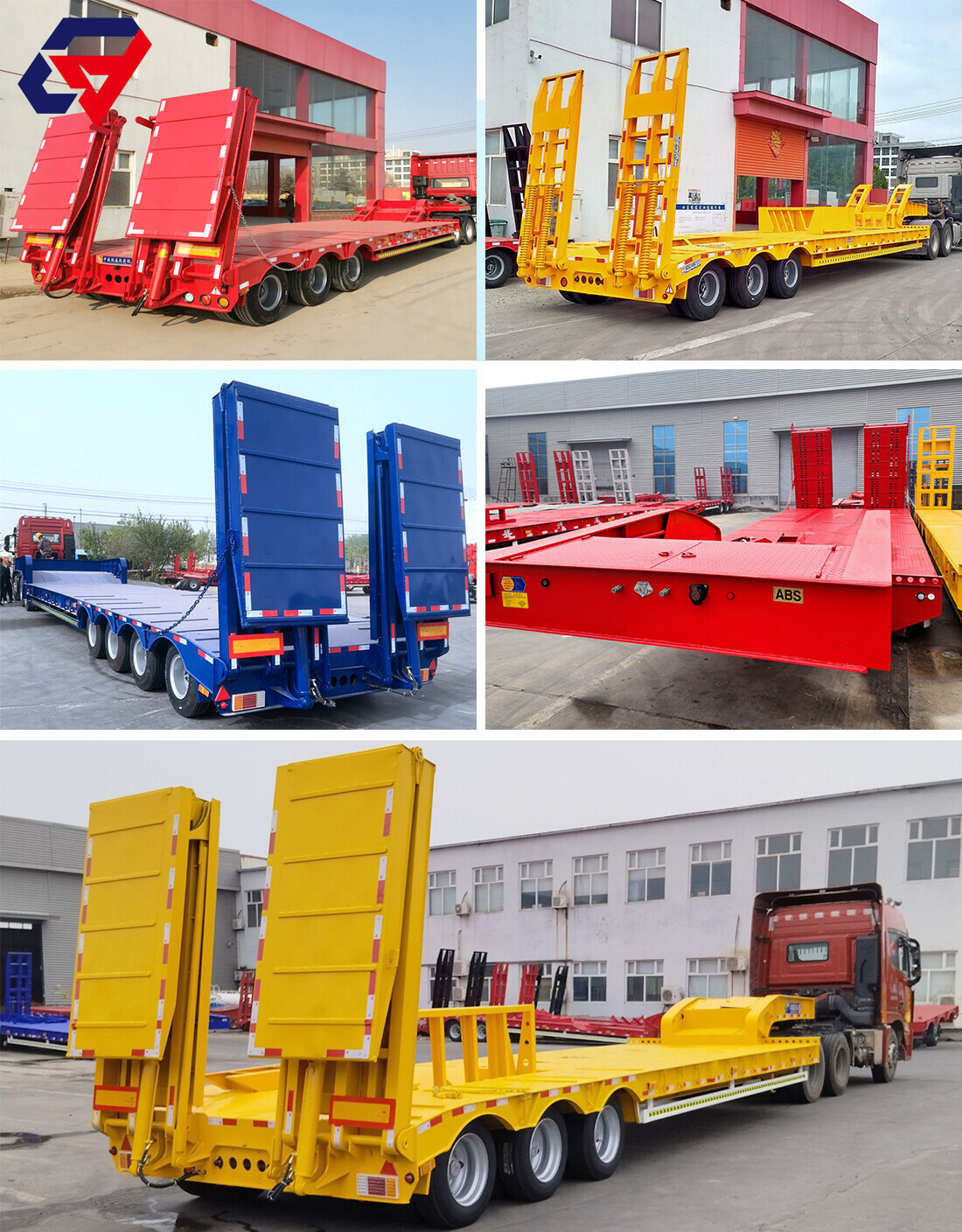

PRODUCT DISPLAY
PRODUCT DISPLAY

◉ 6 Axles Low Bed Trailers

Low Bed Trailer is also named Lowboy trailer, Low loader trailer, Drop deck trailer, Low deck trailer, Low loader.

Generally, the normal low bed semi-trailer loading capacity is from 30T-120T.

For the special requirements on loading capacity or cargo size, customization is necessary.

Low Loader Trailer is the most classic type of low deck and heavy haulage, and all the other lowbed trailers like RGN trailer, Folding neck trailer, Extendable lowbed trailer are designed based on the original feature of conventional low bed trailer.

Gooseneck, long cargo platform, the rear end with wheel and ramp, the three parts are the main structure of low loader.

Ultra-low deck, long cargo platform, heavy haulaging are the common features of low bed trailer.


PRODUCT PARAMETERS
PRODUCT PARAMETERS

Series of low flat semi-trailer has flat plate, concave beam and tire exposed structure, its frame is stepped, longitudinal beam section is I-shaped, with high stiffness and high strength characteristics.

The main plane of the frame cargo platform is low, which ensures the smoothness of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel.
The use of three-axis balance type, two-axis balance type or rigid suspension, equipped with a mass balance block between the front and rear leaf springs, can make the deflection of the front and rear leaf springs equal changes, so that the front and rear axes are balanced.
Carbon dioxide gas protection welding is adopted, and the entire frame is treated by shot peening, making the vehicle more beautiful.
                              Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available)
Product Name2 axles lowbed semi trailer3 axles lowbed semi trailer4 axles lowbed semi trailer
Size(mm）12500×3000×110013000×3000×110014000×3000×1100
Payload40000KG60000KG80000KG
Plate4mm checked plate4mm checked plate5mm checked plate
Axles2×13ton capacity3×13ton capacity4×13ton capacity
(Brand optional)(Brand optional)(Brand optional)
LadderHydraulic ladder or Mechanical spring ladder
Main beamHeight:500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm
Material is Q345B Steel
Side beam250mm I beam; 20mm channel steel ( Material is Q235steel )
Bottom Platform4mm thickness diamond steel plate
SuspensionMechanical suspension (Air suspension optional)
Leaf spring90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
(specially intended for overseas markets)
Tire12R22.5/11.00R20 8pcs (Other size optional)
Rim9.00-22.5/11.00R20 8pcs (Other size optional)
Kin pin2’’/3.5’’ bolt type
Landing gear28Ton two speed
Braking systemDouble air chamber, brake valve, 45L air tanks; ABS optional
ElectricalLEDlight, 7ways, 24V
AccessoryOne tooling box with a set of standard trailer tool
Painting1.Sand blasting processing clean rust.
2.Coat of anticorrosive primer.
3.Coats of finish urethane paint.
4.Color as customer choice.
Other DescriptionsThe cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the transportation.
UsageIt is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,power plant equipment or machine, and all sorts of steel products.

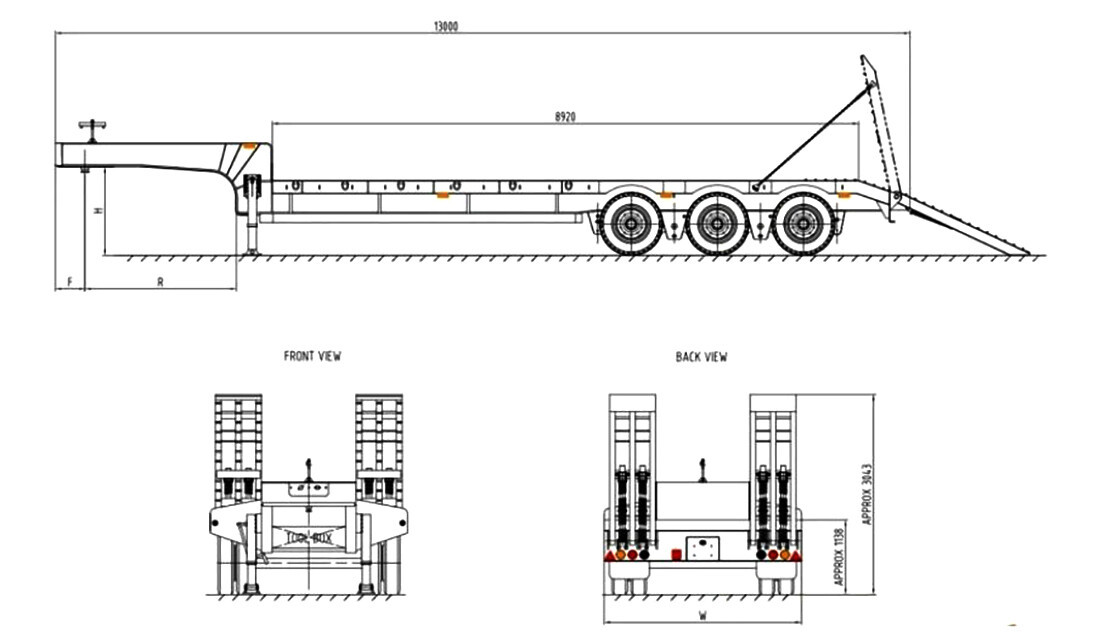

Other SpecificationsIt's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders belong to optional components), with the overall height of 1710 mm.
RemarkWe can design model according to client's requirement

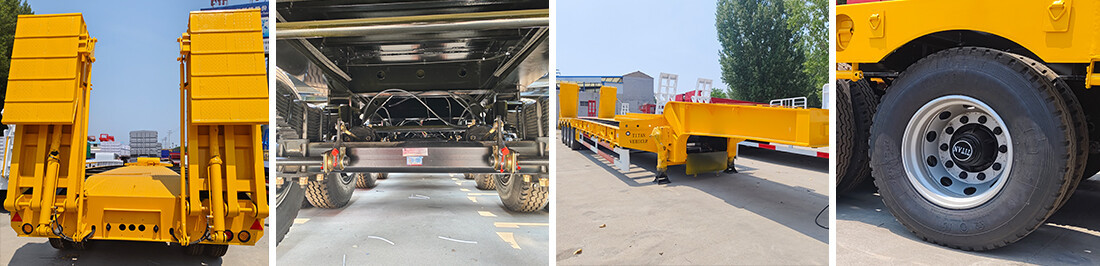

PRODUCT DETAILS


Electrophoresis Painting

Corrosion resistant and strong print adhesiveness up to 9 years. The whole body painting process makes sure no spots are missed and gives the best anti-rust performance.

Loading Ramp

Suitable slopes, automated operation, equipped with electric or hydraulic systems and slopes designed with expandable functions that can be adjusted to suit different loading requirements.

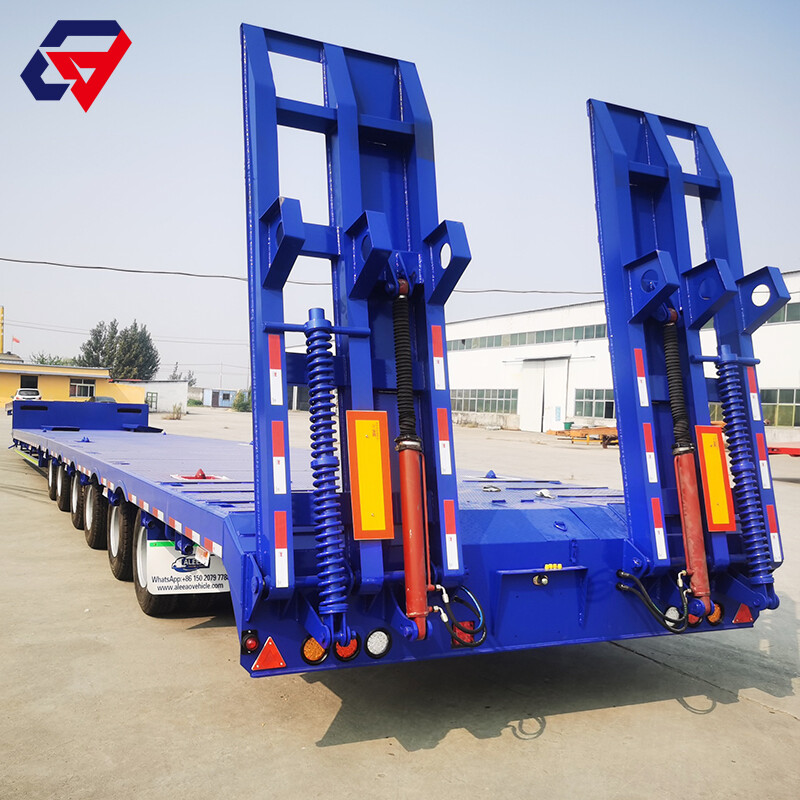

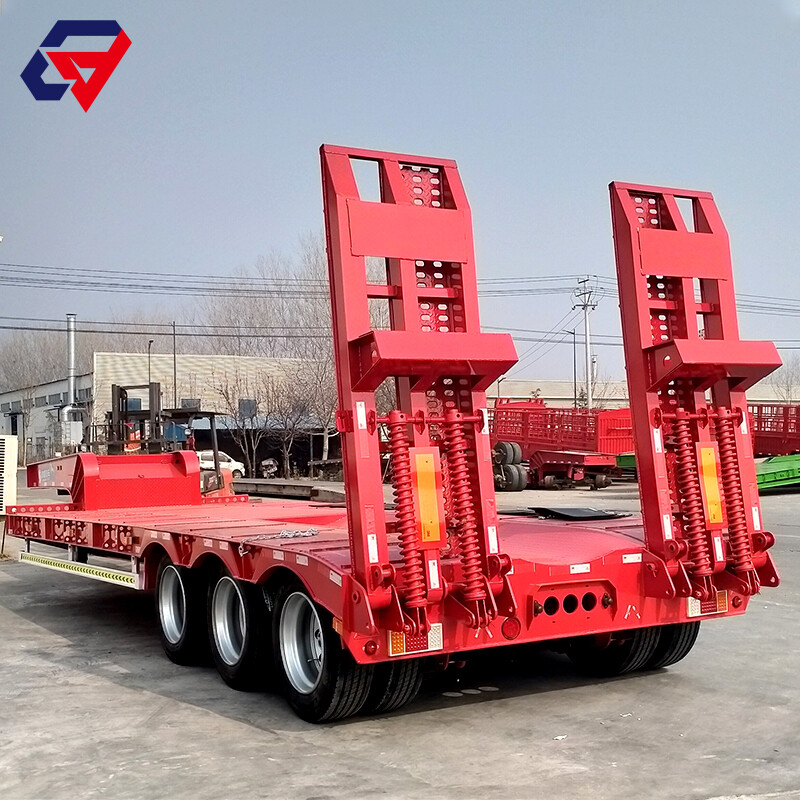

Mechanical Climbing Ladder

Strong structure and carry capacity, provides effective support and protection for heavy equipment and machineries during loading and unloading process.

Tires

High quality tire brands such as Double Coin/Linglong/Triangle can be optioned for the best performance.
PACKAGING AND TRANSPORTATION
PACKAGING AND TRANSPORTATION



FAQ
FAQ

What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated

What is the shipping method and time?

Ro-ro, deck, frame, shipping time depends on shipping company

Can You Supply The Spare Parts Of This Truck Trailer?

Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.

Can You Satisfy My Special Requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.

Are you a factory or a distributor?

We are a factory with 15 years of export experience

How to guarantee truck quality?

There is a one-year warranty, and all parts are inspected.
